Λεπτομέρειες για το προϊόν
Τόπος καταγωγής: Guangdong, Κίνα
Μάρκα: Longyuan Lock
Πιστοποίηση: CE ROHS ISO9000
Αριθμό μοντέλου: LY-8830
Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min: 10 κομμάτια
Τιμή: negotiable
Συσκευασία λεπτομέρειες: Χαρτοκιβώτιο: 100PCS/CTN Υλικό συσκευασίας: K=K Ενισχυμένο χαρτοκιβώτιο για ασφάλεια ηλεκτρομηχανική
Χρόνος παράδοσης: 5-15work ημέρες
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union
Δυνατότητα προσφοράς: 10000pcs/day
Εκτιμημένη τάση: |
DC24V |
Ανώτατη δύναμη: |
48W |
Τρέχων: |
2A |
Υλικό σωμάτων κλειδαριών: |
spcc |
Μέγεθος σώματος κλειδαριών: |
80mmx70mmx20mm |
Θερμοκρασία εργασίας: |
-40℃ σε +80℃ |
Βάρος με το γάντζο: |
247g |
Αλατισμένη δοκιμή ψεκασμού: |
≥48hours |
Χρήση: |
Γραφείο αυτοεξυπηρετήσεων υπεραγορών, γραφείο δεμάτων, μηχανή πώλησης κ.λπ. |
Εκτιμημένη τάση: |
DC24V |
Ανώτατη δύναμη: |
48W |
Τρέχων: |
2A |
Υλικό σωμάτων κλειδαριών: |
spcc |
Μέγεθος σώματος κλειδαριών: |
80mmx70mmx20mm |
Θερμοκρασία εργασίας: |
-40℃ σε +80℃ |
Βάρος με το γάντζο: |
247g |
Αλατισμένη δοκιμή ψεκασμού: |
≥48hours |
Χρήση: |
Γραφείο αυτοεξυπηρετήσεων υπεραγορών, γραφείο δεμάτων, μηχανή πώλησης κ.λπ. |

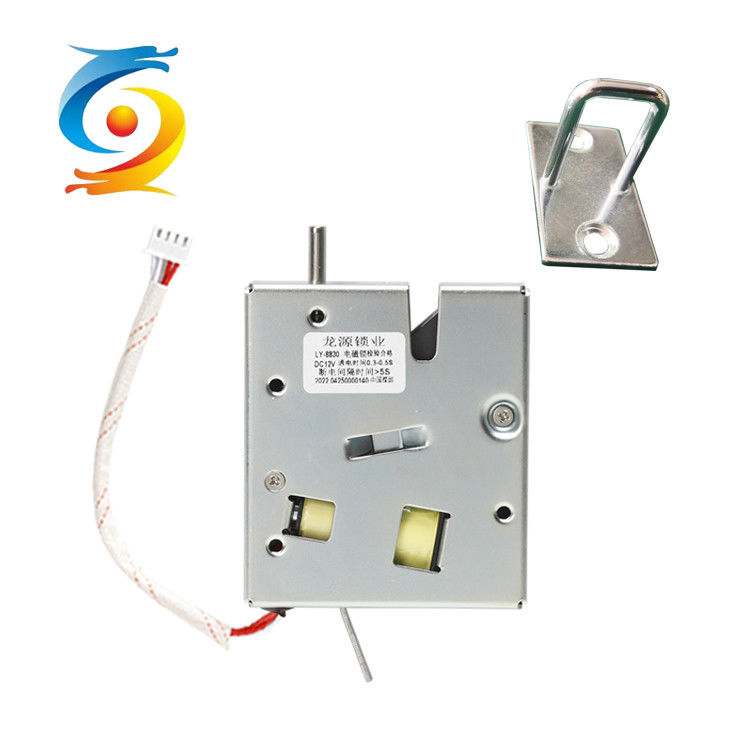

Multi-Application Keyless Smart Cabinet Lock Electronic Storage Cabinet for Sauna
Product Quick detail
Longyuan Electromagnetic Lock Power on unlocking instant, less than 1second, usually closed and locked without power consumption, much energy saving, low voltage: DC12V (according to the actual demands of users: 5V-24V various voltage models for option) Long life: can be used repeatedly 1.2 million times Safety: Sensitive, shockproof, pry-proof, rust-proof.
Company Culture
1. Vision
To be global lock brand trusted by consumers
2. Mission
Committed to provide quality products and services
3. Values
Quality first, customer first, pursuit of excellence
4. Slogan
Technology creates high-quality goods, leading creates quality
Principle
It is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM. If the password is correct, the electromagnetic actuator will be driven to unlock; if the password is incorrect, the operator will be allowed to re-enter the password for up to three times; If it is not correct, the single-chip microcomputer will send an alarm to the intelligent monitor through the communication line.
Quality Assurance
1. ISO9001 Certified 17+Years OEM Factory
2. Each lock before shipment has a series of test, such as power on/off of power supply; Door force; Voltage Tolerance; Overall lock Life; High temperature and humidity; Anti-vibration; Anti-shoke etc etc.
3. All products have passed FCC, CE RoHS and other certifications.
Specification
|
Product name
|
supermarket self pick up electronic lock for sales
|
|
Place of Origin
|
Shenzhen China
|
|
Model
|
LY-8830
|
|
Brand Name
|
Longyuan Lock
|
|
Lock Body size
|
80mmx70mmx20mm
|
|
Weight with lock hook
|
247g
|
|
Material of lock body
|
SPCC
|
|
Material of lock tongue
|
Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC24V (Voltage customized)
|
|
Current
|
2A
|
|
Min Unlock Voltage
|
15V
|
|
Max power
|
48W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Work temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Salt spray testing
|
≥48hours
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/ switch (open/close)
|
Open/ Close Feedback for option
|
|
Install way
|
Screw
|
|
Certification
|
CE ROHS ISO9000
|
|
Warranty
|
1year
|
Packing & Delivery
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Carton size:520mmx245mmx180mm.
Lock latch: 1000pcs/carton
Mounting screws: 9000pcs/carton
Customized package also available.
